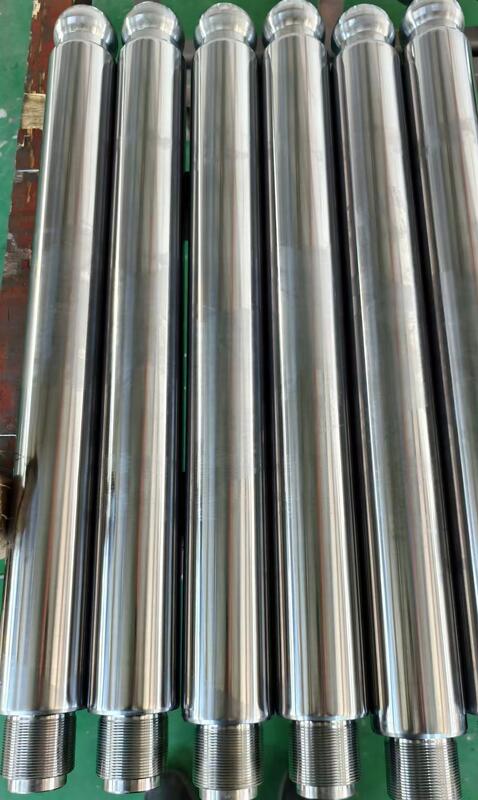

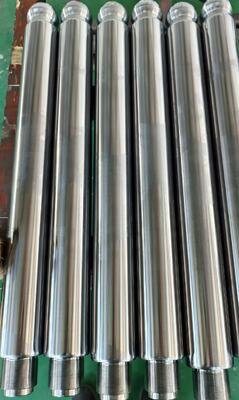

Roughness 0.05um Hydraulic Cylinder Shaft Solid Shaft 200mm - 20000mm
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhisheng |
| Model Number: | 20# |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 tons |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Anti rust oil to be applied on material and each rod to be packed in paper sleeve |
| Delivery Time: | 30days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 30tons a day |
|
Detail Information |
|||
| High-frequency Quenching: | HRC50-60 | Surface Hardness: | 800-1150HV |
|---|---|---|---|
| Surface Treatment: | Chromium Plating,medium And High Frequency Induction Hardening,quenching And Tempering,quenching Andtempering+medium And High Frequency Induction Hardening | Salt Spray Test: | Level 9150-300 Hours |
| Weldability: | Good | Packing: | After Rust Prevention Oil Treatment,each Piece Is Wrapped In A Waterproof Paper Tube/wooden Box |
| Quality Certificate: | Provide Product Quality Reports,chromium Plating Thickness Reports,salt Spray Test Reports,etc | Quenching And Tempering Hardness: | HB220-360 |
| Straightness: | ≤0.1mm/m | Surface Roughness: | ≤0.05μm |
| Chromium Plating Thicknes: | 0.02mm-0.50mm | Outer Diameter Tolerance: | Other Customizable Options) |
| Length: | L200-20000mm | Size: | φ20-φ500mm |
| Highlight: | roughness 0.05um Hydraulic Cylinder Shaft,05um Hydraulic Cylinder Shaft 200mm,Solid Shaft 20000mm |
||
Product Description
Industrial Precision Solid Shaft for High-Load Power Transmission Systems
Product Overview
The Industrial Precision Solid Shaft is engineered for factories and machinery manufacturers seeking a highly durable, accurately machined, and stable power-transmission solution. Built from premium alloy steel and stainless steel, this shaft offers excellent tensile strength, superior rigidity, and smooth rotational performance. Its advanced heat-treatment process ensures long-lasting wear resistance, making it ideal for motors, reducers, conveyors, and automated production lines.
Designed to meet demanding industrial environments, this solid shaft maintains dimensional accuracy under heavy loads, high torque, and continuous operation, making it a reliable choice for OEM applications and equipment upgrades.
Product Specifications
| Attribute | Value |
|---|---|
| Material Options | 45# Steel / 40Cr / 42CrMo / SCM440 / 304 / 316 / 440C |
| Heat Treatment | Quenched & Tempered / Induction Hardened / Nitrided |
| Hardness | HRC 30–60 (Adjustable) |
| Diameter Range | 8–260 mm |
| Length Range | 200–7500 mm |
| Surface Roughness | Ra ≤ 0.2–0.6 μm |
| Straightness | ≤ 0.02 mm/m |
| Tolerance Options | h6 / h7 / g6 / Custom |
| Processing Options | CNC Turning / Keyway Cutting / Thread Ends / Drilled Ends |
| Certification | ISO 9001 / CE / RoHS |
Key Features
-
High-strength alloy construction ideal for heavy-load power transmission
-
Extremely stable rotational accuracy for CNC and automation systems
-
Wear-resistant hardening options extend operational lifespan
-
Low vibration and noise with precision-ground surfaces
-
Custom machining options for OEM motor shafts, gearbox shafts, and drive shafts
-
Corrosion-resistant materials available for outdoor or harsh environments
Applications
-
Electric motors & servo drives
-
Gear reducers and industrial gearboxes
-
Automation equipment and robotic systems
-
Conveyor lines and manufacturing machinery
-
Pumps, compressors, blowers, and rotating units
-
Heavy industrial, mining, and construction equipment
Customer Benefits
-
Reliable high-load performance for continuous industrial operation
-
Improved machine stability and torque transmission efficiency
-
Reduced maintenance cost due to enhanced wear resistance
-
Custom dimensions, heat treatments, and end machining available
-
Optimized for high-ranking SEO keywords such as solid shaft, industrial shaft, power transmission shaft, and precision machined shaft
