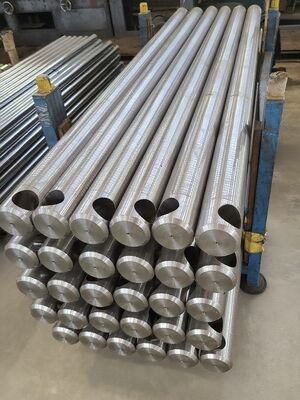

ST52 Precision Piston Rod HRC50-60 0.05μm Surface Roughness
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhisheng |
| Model Number: | ST52 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 tons |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Anti rust oil to be applied on material and each rod to be packed in paper sleeve |
| Delivery Time: | 30days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 30tons a day |
|
Detail Information |
|||
| High-frequency Quenching: | HRC50-60 | Surface Hardness: | 800-1150HV |
|---|---|---|---|
| Surface Treatment: | Chromium Plating,medium And High Frequency Induction Hardening,quenching And Tempering,quenching Andtempering+medium And High Frequency Induction Hardening | Salt Spray Test: | Level 9150-300 Hours |
| Weldability: | Good | Packing: | After Rust Prevention Oil Treatment,each Piece Is Wrapped In A Waterproof Paper Tube/wooden Box |
| Quality Certificate: | Provide Product Quality Reports,chromium Plating Thickness Reports,salt Spray Test Reports,etc | Quenching And Tempering Hardness: | HB220-360 |
| Straightness: | ≤0.1mm/m | Surface Roughness: | ≤0.05μm |
| Chromium Plating Thicknes: | 0.02mm-0.50mm | Outer Diameter Tolerance: | Other Customizable Options) |
| Length: | L200-20000mm | Size: | φ20-φ500mm |
| Highlight: | ST52 precision piston rod HRC50-60,precision piston rod 0.05μm roughness,hardened piston rod with high precision |
||
Product Description
ST52 Precision Piston Rod
Product Overview
The Precision Piston Rod is engineered for heavy-duty applications, delivering exceptional durability, surface hardness, and corrosion resistance in extreme working environments.
Material & Process
- Alloy steel or stainless steel construction
- Induction hardened to HRC 55-60
- Heat-treated for enhanced toughness
- Chrome or nickel plated for superior protection
Features & Advantages
- High load-bearing capacity with excellent fatigue resistance
- Exceptional surface hardness for wear and impact resistance
- Corrosion protection suitable for harsh environments
- Reliable performance under frequent operation cycles
Applications
- Excavators and mining machinery
- Hydraulic presses and lifting platforms
- Offshore and marine hydraulic systems
- Heavy construction equipment
Customization Options
- Bore and groove machining available
- Custom end configurations per customer drawings
- Extended lengths up to 8 meters
- Specialized coatings for seawater or high-temperature applications
Technical Parameters
| Parameter | Specification |
|---|---|
| Diameter | 20-200 mm |
| Surface hardness | HRC 55-60 |
| Tensile strength | ≥ 850 MPa |
| Surface roughness | Ra ≤ 0.4 μm |
Chemical Composition
