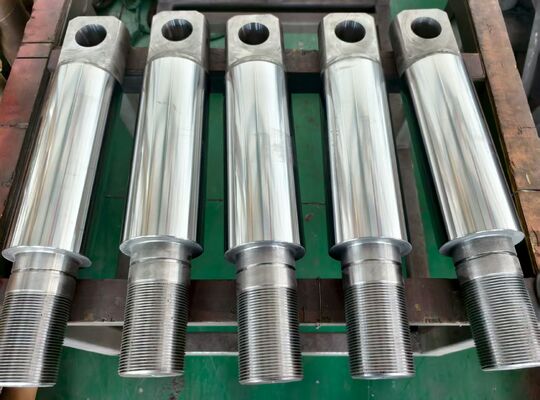

45# Precision Piston Rod φ20-500mm L200-20000mm
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhisheng |
| Model Number: | 45# |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 tons |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Anti rust oil to be applied on material and each rod to be packed in paper sleeve |
| Delivery Time: | 30days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 30tons a day |
|
Detail Information |
|||
| High-frequency Quenching: | HRC50-60 | Surface Hardness: | 800-1150HV |
|---|---|---|---|
| Surface Treatment: | Chromium Plating,medium And High Frequency Induction Hardening,quenching And Tempering,quenching Andtempering+medium And High Frequency Induction Hardening | Salt Spray Test: | Level 9150-300 Hours |
| Weldability: | Good | Packing: | After Rust Prevention Oil Treatment,each Piece Is Wrapped In A Waterproof Paper Tube/wooden Box |
| Quality Certificate: | Provide Product Quality Reports,chromium Plating Thickness Reports,salt Spray Test Reports,etc | Quenching And Tempering Hardness: | HB220-360 |
| Straightness: | ≤0.1mm/m | Surface Roughness: | ≤0.05μm |
| Chromium Plating Thicknes: | 0.02mm-0.50mm | Outer Diameter Tolerance: | Other Customizable Options) |
| Length: | L200-20000mm | Size: | φ20-φ500mm |
| Highlight: | 45# precision piston rod φ20-500mm,precision piston rod L200-20000mm,45# steel piston rod with warranty |
||
Product Description

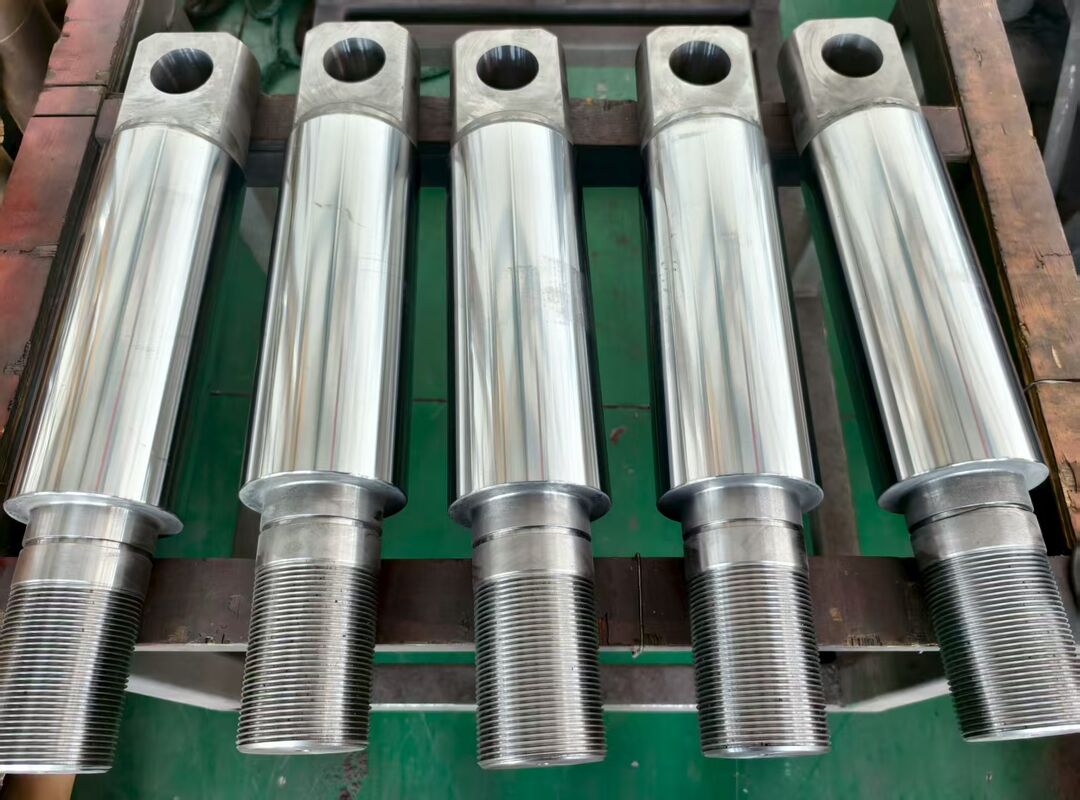

45# Precision Piston Rod
Product Overview
The Precision Piston Rod is a fundamental component of hydraulic and pneumatic cylinders, engineered with high accuracy and durability for stable motion and reliable performance.
Material & Process
- High-quality carbon steel, alloy steel, or stainless steel
- Quenched and tempered for improved strength
- Precision grinding and polishing
- Hard chrome plating for surface protection
Features & Advantages
- Excellent straightness and concentricity
- Smooth surface to reduce friction and seal wear
- High tensile strength and load capacity
- Long service life with minimal maintenance
Applications
- Hydraulic and pneumatic cylinders
- Industrial automation equipment
- Construction and agricultural machinery
- Lifting and transportation systems
Customization Options
- Diameter: 6-300 mm
- Length: Up to 6000 mm
- End machining: threads, grooves, keyways
- Coatings: chrome, nickel, ceramic
Technical Parameters (Example)
| Material | CK45 steel |
| Hardness | HRC 40-45 |
| Chrome layer thickness | 20-30 μm |
| Straightness | ≤ 0.01 mm / 100 mm |
Chemical Composition
