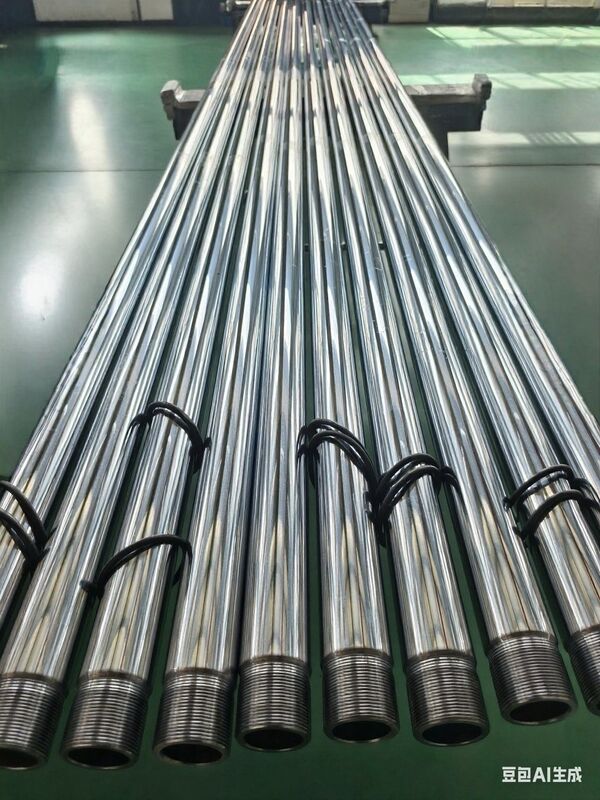

42CrMo4 Precision Piston Rod φ20-500mm L200-20000mm
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhisheng |
| Model Number: | 42CrMo4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 tons |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Anti rust oil to be applied on material and each rod to be packed in paper sleeve |
| Delivery Time: | 30days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 30tons a day |
|
Detail Information |
|||
| High-frequency Quenching: | HRC50-60 | Surface Hardness: | 800-1150HV |
|---|---|---|---|
| Surface Treatment: | Chromium Plating,medium And High Frequency Induction Hardening,quenching And Tempering,quenching Andtempering+medium And High Frequency Induction Hardening | Salt Spray Test: | Level 9150-300 Hours |
| Weldability: | Good | Packing: | After Rust Prevention Oil Treatment,each Piece Is Wrapped In A Waterproof Paper Tube/wooden Box |
| Quality Certificate: | Provide Product Quality Reports,chromium Plating Thickness Reports,salt Spray Test Reports,etc | Quenching And Tempering Hardness: | HB220-360 |
| Straightness: | ≤0.1mm/m | Surface Roughness: | ≤0.05μm |
| Chromium Plating Thicknes: | 0.02mm-0.50mm | Outer Diameter Tolerance: | Other Customizable Options) |
| Length: | L200-20000mm | Size: | φ20-φ500mm |
| Highlight: | 42CrMo4 precision piston rod,precision piston rod φ20-500mm,piston rod L200-20000mm |
||
Product Description
42CrMo4 Precision Piston Rod
Product Overview
The Precision Piston Rod is manufactured with advanced CNC machining and multi-step grinding to ensure high dimensional accuracy, excellent surface quality, and stable performance.
Material & Process
- Alloy steel, carbon steel, stainless steel
- CNC turning and precision grinding
- Polishing to achieve mirror-like finish
- Strict dimensional inspection and testing
Features & Advantages
- Tight tolerances for diameter and roundness
- Concentricity maintained between core and surface
- Mirror surface finish Ra ≤ 0.2 μm
- Reduced vibration and noise during operation
Applications
- Robotics and automation systems
- Precision measuring equipment
- Medical devices and instruments
- High-speed linear actuators
Customization Options
- End machining: splines, keyways, threads
- Bore and taper machining
- Stainless steel 304 / 316 available
- Optional ceramic or nickel plating
Technical Parameters (Example)
| Diameter range | 5-80 mm |
| Length tolerance | ±0.01 mm |
| Concentricity | ≤ 0.005 mm |
| Surface roughness | Ra ≤ 0.2 μm |
Chemical Composition
