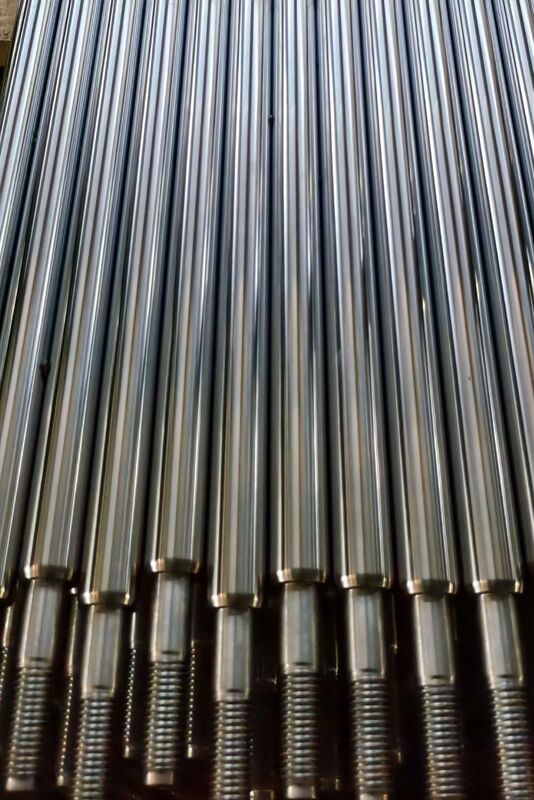

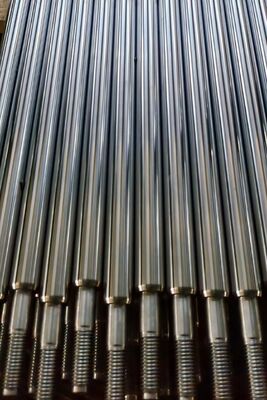

High Strength Hydraulic Cylinder Shaft Material Precision Ground Shafting For Power Transmission
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhisheng |
| Model Number: | 20# |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 tons |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Anti rust oil to be applied on material and each rod to be packed in paper sleeve |
| Delivery Time: | 30days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 30tons a day |
|
Detail Information |
|||
| High-frequency Quenching: | HRC50-60 | Surface Treatment: | Chromium Plating,medium And High Frequency Induction Hardening,quenching And Tempering,quenching Andtempering+medium And High Frequency Induction Hardening |
|---|---|---|---|
| Salt Spray Test: | Level 9150-300 Hours | Packing: | After Rust Prevention Oil Treatment,each Piece Is Wrapped In A Waterproof Paper Tube/wooden Box |
| Quenching And Tempering Hardness: | HB220-360 | Straightness: | ≤0.1mm/m |
| Surface Roughness: | ≤0.05μm | Chromium Plating Thicknes: | 0.02mm-0.50mm |
| Length: | L200-20000mm | Size: | φ20-φ500mm |
| Highlight: | High Strength Hydraulic Cylinder Shaft,hydraulic cylinder shaft material Precision,precision ground shafting |
||
Product Description
High Strength Precision Solid Shaft for Industrial Power Transmission
Product Overview
The High Strength Precision Solid Shaft is engineered for demanding industrial applications requiring durability, accuracy, and stable rotational performance. Manufactured from high-grade alloy or stainless steel, each shaft undergoes precision machining, heat treatment, and surface finishing to ensure excellent rigidity, wear resistance, and long-term reliability. It is widely used in motors, gearboxes, conveyors, automation systems, and heavy machinery.
Product Specifications
| Attribute | Value |
|---|---|
| Material Options | Carbon Steel (C45 / 1045), Alloy Steel (42CrMo), Stainless Steel (304 / 316 / 440C) |
| Diameter Range | 6–200 mm |
| Length Range | 100–6000 mm |
| Surface Hardness | HRC 55–62 |
| Surface Treatment | Chrome Plating / Black Oxide / Polishing / Nitriding |
| Straightness | ≤ 0.02 mm/m |
| Tolerance Class | h6 / h7 / Customized |
| Finish Roughness | Ra 0.2–0.8 μm |
| Processing Options | Turning, Grinding, Milling, Keyway Cutting, Thread Ends |
| Certification | ISO / CE |
Key Features
-
High tensile strength and rigidity for heavy-load applications
-
Precision grinding ensures excellent straightness and smooth rotation
-
Optional chrome plating enhances corrosion and wear resistance
-
Ideal for high-speed and high-precision machinery
-
Compatible with a wide range of mechanical and automation systems
-
Fully customizable ends, keyways, threads, and geometries
Applications
-
Industrial motors and servo systems
-
Gearboxes and speed reducers
-
Conveyors and power transmission lines
-
CNC machinery and robotics
-
Pumps, compressors, agricultural machinery
Customer Benefits
-
Long service lifespan with reduced maintenance
-
High rotational stability improves machine accuracy
-
Custom sizes available for OEM manufacturing
-
Excellent resistance to fatigue, impact, and corrosion
-
Reliable performance under heavy load and continuous operation
