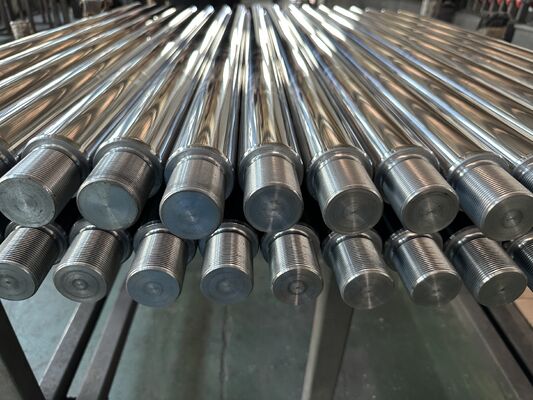

Ultra Long Alloy Steel Solid Shaft For Heavy Industrial Machinery 500mm
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhisheng |
| Model Number: | 20# |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 tons |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Anti rust oil to be applied on material and each rod to be packed in paper sleeve |
| Delivery Time: | 30days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 30tons a day |
|
Detail Information |
|||
| High-frequency Quenching: | HRC50-60 | Surface Hardness: | 800-1150HV |
|---|---|---|---|
| Surface Treatment: | Chromium Plating,medium And High Frequency Induction Hardening,quenching And Tempering,quenching Andtempering+medium And High Frequency Induction Hardening | Salt Spray Test: | Level 9150-300 Hours |
| Weldability: | Good | Packing: | After Rust Prevention Oil Treatment,each Piece Is Wrapped In A Waterproof Paper Tube/wooden Box |
| Quality Certificate: | Provide Product Quality Reports,chromium Plating Thickness Reports,salt Spray Test Reports,etc | Quenching And Tempering Hardness: | HB220-360 |
| Straightness: | ≤0.1mm/m | Surface Roughness: | ≤0.05μm |
| Chromium Plating Thicknes: | 0.02mm-0.50mm | Outer Diameter Tolerance: | Other Customizable Options) |
| Length: | L200-20000mm | Size: | φ20-φ500mm |
| Highlight: | Ultra Long alloy steel solid shaft,heavy industrial machinery shaft,ultra-long solid steel shaft 500mm |
||
Product Description

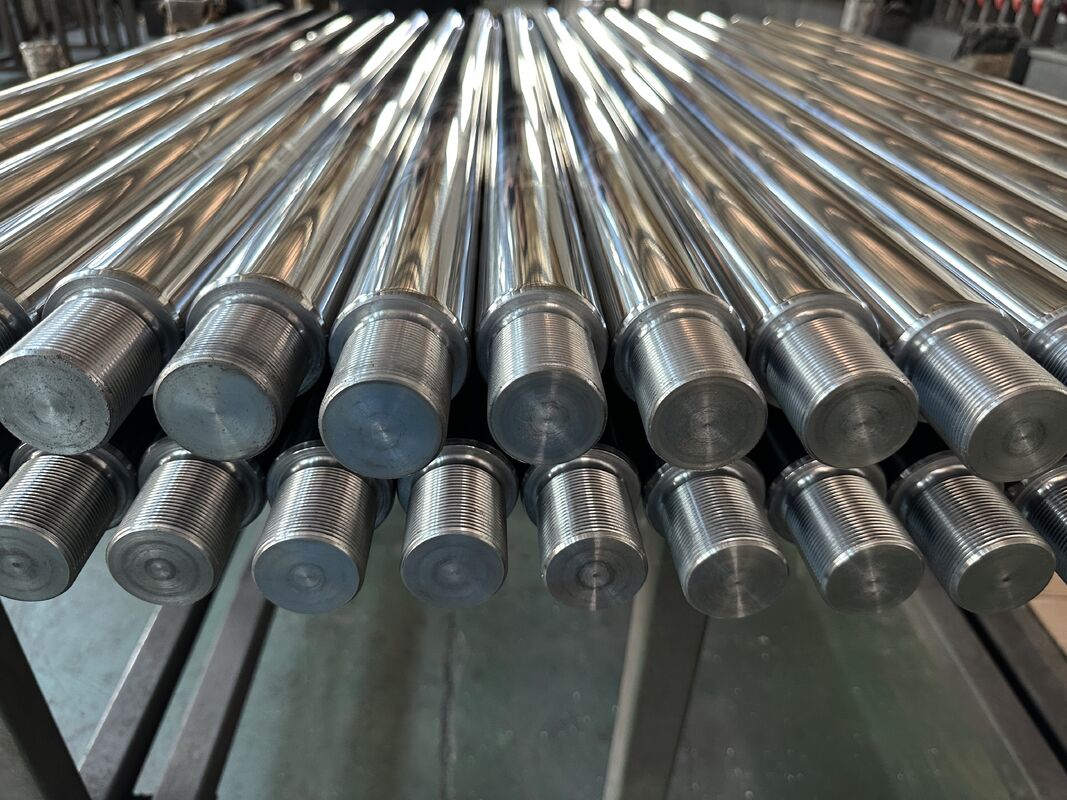

Ultra-Long Alloy Steel Solid Shaft for Heavy Industrial Machinery
Product Overview
The Ultra-Long Alloy Steel Solid Shaft is built for large-scale industrial applications requiring exceptional strength and precision over extended lengths. With optimized material selection and heat treatment, it maintains rigidity and straightness even under extreme load conditions.
Product Specifications
| Attribute | Value |
|---|---|
| Material | 42CrMo / 35CrMo / SCM440 |
| Heat Treatment | Quenched and Tempered |
| Hardness | HRC 28-40 |
| Surface Roughness | ≤ 0.08 μm |
| Straightness | ≤ 0.1 mm/m |
| Tensile Strength | ≥ 950 MPa |
| Yield Strength | ≥ 750 MPa |
| Diameter Range | φ30 mm - φ600 mm |
| Length Range | 1000 mm - 12000 mm |
| Certification | ISO 9001 / SGS / CE |
Key Features
- Designed for long-length and heavy-load applications
- High rigidity and minimal deformation
- Strong impact resistance and durability
- Fully customizable length, material, and finish
Applications
- Rolling mills and steel plants
- Mining and construction equipment
- Wind turbines and heavy drives
- Large-scale power transmission systems
Customer Benefits
- Excellent performance under continuous stress
- Consistent alignment and operational stability
- Reduced maintenance and extended equipment life
Chemical Composition
