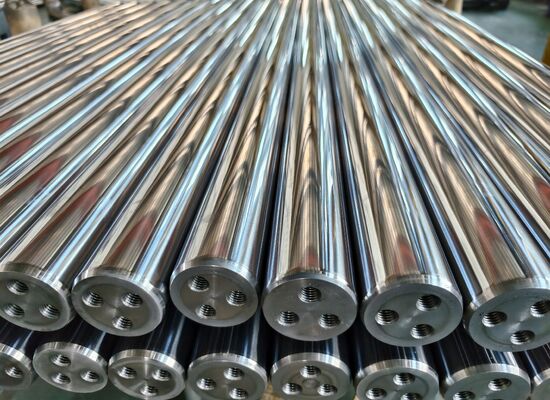

Chrome Plated Solid Shaft for Hydraulic and Pneumatic Cylinders
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhisheng |
| Model Number: | 20# |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 tons |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Anti rust oil to be applied on material and each rod to be packed in paper sleeve |
| Delivery Time: | 30days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 30tons a day |
|
Detail Information |
|||
| High-frequency Quenching: | HRC50-60 | Surface Hardness: | 800-1150HV |
|---|---|---|---|
| Surface Treatment: | Chromium Plating,medium And High Frequency Induction Hardening,quenching And Tempering,quenching Andtempering+medium And High Frequency Induction Hardening | Salt Spray Test: | Level 9150-300 Hours |
| Weldability: | Good | Packing: | After Rust Prevention Oil Treatment,each Piece Is Wrapped In A Waterproof Paper Tube/wooden Box |
| Quality Certificate: | Provide Product Quality Reports,chromium Plating Thickness Reports,salt Spray Test Reports,etc | Quenching And Tempering Hardness: | HB220-360 |
| Straightness: | ≤0.1mm/m | Surface Roughness: | ≤0.05μm |
| Chromium Plating Thicknes: | 0.02mm-0.50mm | Outer Diameter Tolerance: | Other Customizable Options) |
| Length: | L200-20000mm | Size: | φ20-φ500mm |
| Highlight: | chrome plated solid shaft,hydraulic cylinder solid shaft,pneumatic cylinder solid shaft |
||
Product Description
Chrome Plated Solid Shaft for Hydraulic and Pneumatic Cylinders
Product Overview
The Chrome Plated Solid Shaft is built for hydraulic and pneumatic applications that demand corrosion resistance, smoothness, and durability. Its hard chrome coating ensures minimal friction, superior wear resistance, and extended service life.
Product Specifications
| Attribute | Value |
|---|---|
| Material | CK45 / C45E / 42CrMo4 |
| Surface Treatment | Hard Chrome Plated |
| Hardness | HRC 55-65 |
| Surface Roughness | ≤ 0.02 μm |
| Straightness | ≤ 0.05 mm/m |
| Tensile Strength | ≥ 850 MPa |
| Coating Thickness | 20-30 μm |
| Diameter Range | φ10 mm - φ250 mm |
| Length Range | 100 mm - 6000 mm |
| Certification | ISO 9001 / SGS / CE |
Key Features
- High surface hardness and mirror finish
- Excellent corrosion and wear resistance
- Optimized for hydraulic and pneumatic seals
- Low friction coefficient and stable performance
Applications
- Hydraulic piston rods
- Pneumatic actuators
- Press machines and cylinders
- Material handling systems
Customer Benefits
- Extended operational life of sealing components
- Smooth movement and improved efficiency
- Reduced downtime and maintenance requirements
Chemical Composition
