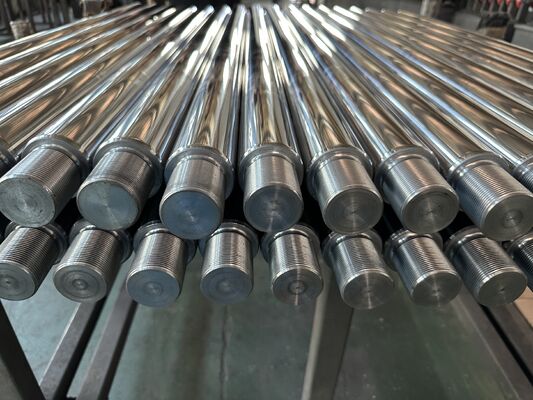

Servo Motor Precision Ground Solid Shaft For Transmission Systems
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhisheng |
| Model Number: | 20# |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 tons |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Anti rust oil to be applied on material and each rod to be packed in paper sleeve |
| Delivery Time: | 30days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 30tons a day |
|
Detail Information |
|||
| High-frequency Quenching: | HRC50-60 | Surface Hardness: | 800-1150HV |
|---|---|---|---|
| Surface Treatment: | Chromium Plating,medium And High Frequency Induction Hardening,quenching And Tempering,quenching Andtempering+medium And High Frequency Induction Hardening | Salt Spray Test: | Level 9150-300 Hours |
| Weldability: | Good | Packing: | After Rust Prevention Oil Treatment,each Piece Is Wrapped In A Waterproof Paper Tube/wooden Box |
| Quality Certificate: | Provide Product Quality Reports,chromium Plating Thickness Reports,salt Spray Test Reports,etc | Quenching And Tempering Hardness: | HB220-360 |
| Straightness: | ≤0.1mm/m | Surface Roughness: | ≤0.05μm |
| Chromium Plating Thicknes: | 0.02mm-0.50mm | Outer Diameter Tolerance: | Other Customizable Options) |
| Length: | L200-20000mm | Size: | φ20-φ500mm |
| Highlight: | Servo Motor precision ground solid shaft,Transmission Systems servo motor solid shaft,0.1mm/m transmission system solid shaft |
||
Product Description

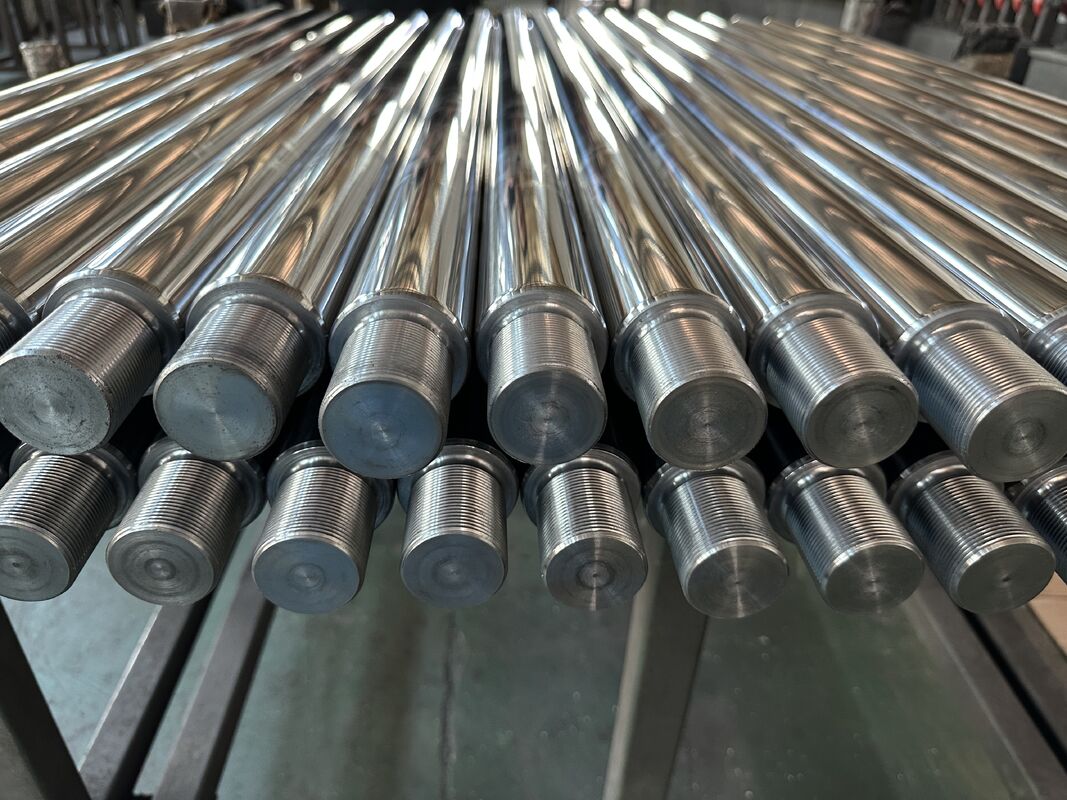

Precision Ground Solid Shaft for Servo Motor and Transmission Systems
Product Overview
The Precision Ground Solid Shaft is designed for servo motors, stepper motors, and precision transmission systems that require tight tolerance and superior balance. Its precision grinding process guarantees optimal roundness and alignment.
Product Specifications
| Attribute | Value |
|---|---|
| Material | 45# Steel / S45C / 1045 Carbon Steel |
| Heat Treatment | Quenched and Tempered |
| Hardness | HRC 25-35 |
| Surface Roughness | ≤ 0.03 μm |
| Straightness | ≤ 0.05 mm/m |
| Tensile Strength | ≥ 800 MPa |
| Diameter Range | φ10 mm - φ150 mm |
| Length Range | 150 mm - 3000 mm |
| Certification | ISO 9001 / SGS |
Key Features
- High concentricity and tight tolerance
- Optimized for smooth rotation
- Suitable for dynamic power transmission
- Excellent dimensional stability under stress
Applications
- Servo and stepper motor shafts
- Precision mechanical assemblies
- Drive couplings and gear systems
- Automation and control devices
Customer Benefits
- High stability and low vibration
- Consistent performance at high RPM
- Custom grinding and machining services
Chemical Composition
