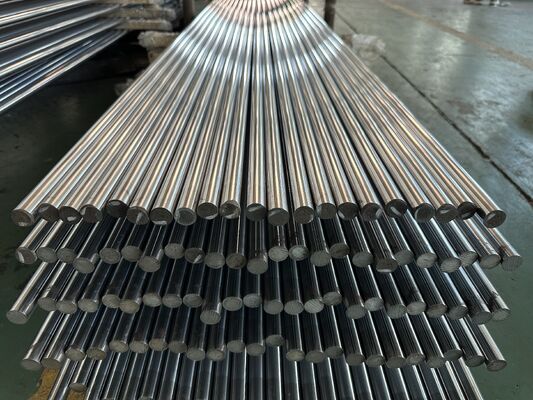

Induction Hardened Linear Shaft for Motion and Automation Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhisheng |
| Model Number: | 20# |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 tons |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Anti rust oil to be applied on material and each rod to be packed in paper sleeve |
| Delivery Time: | 30days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 30tons a day |
|
Detail Information |
|||
| High-frequency Quenching: | HRC50-60 | Surface Hardness: | 800-1150HV |
|---|---|---|---|
| Surface Treatment: | Chromium Plating,medium And High Frequency Induction Hardening,quenching And Tempering,quenching Andtempering+medium And High Frequency Induction Hardening | Salt Spray Test: | Level 9150-300 Hours |
| Weldability: | Good | Packing: | After Rust Prevention Oil Treatment,each Piece Is Wrapped In A Waterproof Paper Tube/wooden Box |
| Quality Certificate: | Provide Product Quality Reports,chromium Plating Thickness Reports,salt Spray Test Reports,etc | Quenching And Tempering Hardness: | HB220-360 |
| Straightness: | ≤0.1mm/m | Surface Roughness: | ≤0.05μm |
| Chromium Plating Thicknes: | 0.02mm-0.50mm | Outer Diameter Tolerance: | Other Customizable Options) |
| Length: | L200-20000mm | Size: | φ20-φ500mm |
| Highlight: | induction hardened linear shaft,linear shaft for automation equipment,solid shaft with induction hardening |
||
Product Description
Induction Hardened Linear Shaft for Motion and Automation Equipment
Product Overview
The Induction Hardened Linear Shaft is optimized for motion control systems that demand high hardness, precision, and smooth operation. With a hardened surface and polished finish, it ensures minimal friction and consistent performance.
Product Specifications
| Attribute | Value |
|---|---|
| Material | CK45 / GCr15 / SUJ2 |
| Heat Treatment | Induction Hardened |
| Hardness | HRC 58-62 |
| Surface Roughness | ≤ 0.02 μm |
| Straightness | ≤ 0.03 mm/m |
| Tensile Strength | ≥ 850 MPa |
| Diameter Range | φ6 mm - φ120 mm |
| Length Range | 100 mm - 4000 mm |
| Certification | ISO 9001 / RoHS / CE |
Key Features
- Hardened surface for high wear resistance
- Smooth and precise linear motion performance
- Excellent concentricity and surface finish
- Compatible with linear bearings and bushings
Applications
- CNC machinery and robotics
- Linear motion systems
- Automatic production lines
- Packaging and textile equipment
Customer Benefits
- Smooth movement with low noise
- Extended operational lifespan
- High positioning accuracy and repeatability
Chemical Composition
