Durable Alloy Solid Shaft for Motors and Transmission Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhisheng |
| Model Number: | 20# |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 tons |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Anti rust oil to be applied on material and each rod to be packed in paper sleeve |
| Delivery Time: | 30days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 30tons a day |
|
Detail Information |
|||
| High-frequency Quenching: | HRC50-60 | Surface Hardness: | 800-1150HV |
|---|---|---|---|
| Surface Treatment: | Chromium Plating,medium And High Frequency Induction Hardening,quenching And Tempering,quenching Andtempering+medium And High Frequency Induction Hardening | Salt Spray Test: | Level 9150-300 Hours |
| Weldability: | Good | Packing: | After Rust Prevention Oil Treatment,each Piece Is Wrapped In A Waterproof Paper Tube/wooden Box |
| Quality Certificate: | Provide Product Quality Reports,chromium Plating Thickness Reports,salt Spray Test Reports,etc | Quenching And Tempering Hardness: | HB220-360 |
| Straightness: | ≤0.1mm/m | Surface Roughness: | ≤0.05μm |
| Chromium Plating Thicknes: | 0.02mm-0.50mm | Outer Diameter Tolerance: | Other Customizable Options) |
| Length: | L200-20000mm | Size: | φ20-φ500mm |
| Highlight: | hardened chrome solid shaft,automation solid shaft,linear motion solid shaft |
||
Product Description

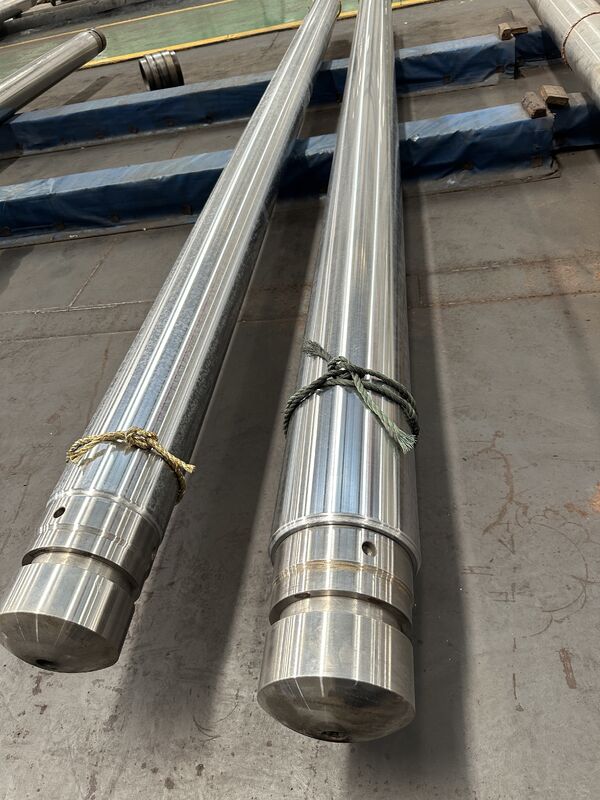

Durable Alloy Solid Shaft for Motors and Transmission Equipment
Product Overview
The Durable Alloy Solid Shaft is built for motors, gearboxes, and transmission systems that require superior strength and endurance. Manufactured from high-grade alloy steel, the shaft combines toughness, fatigue resistance, and stable performance under continuous load conditions.
Product Specifications
| Attribute | Value |
|---|---|
| Material | 40Cr / 20CrMnTi / 42CrMo / SCM440 |
| Heat Treatment | Quenched and Tempered / Induction Hardened |
| Hardness | HRC 28-40 |
| Surface Roughness | ≤ 0.05 μm |
| Straightness | ≤ 0.1 mm/m |
| Tensile Strength | ≥ 850 MPa |
| Yield Strength | ≥ 600 MPa |
| Diameter Range | φ15 mm - φ500 mm |
| Length Range | 200 mm - 8000 mm |
| Certification | ISO 9001 / CE / SGS |
Key Features
- High torque and fatigue resistance
- Excellent machinability and dimensional stability
- Optimized for rotating and power transmission components
- Surface-hardened for extended operational life
- Available in custom diameters and lengths
Applications
- Electric motors and gearboxes
- Industrial transmission shafts
- Heavy machinery and construction equipment
- Pumps and compressors
Customer Benefits
- Long-lasting reliability under high mechanical stress
- Smooth rotation with minimal vibration
- Reduced maintenance costs and downtime
- Custom alloy and surface treatment options
Chemical Composition
Want to Know more details about this product
