Hardened Chrome Solid Shaft for Automation and Linear Motion Systems
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhisheng |
| Model Number: | 20# |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 tons |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Anti rust oil to be applied on material and each rod to be packed in paper sleeve |
| Delivery Time: | 30days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 30tons a day |
|
Detail Information |
|||
| High-frequency Quenching: | HRC50-60 | Surface Hardness: | 800-1150HV |
|---|---|---|---|
| Surface Treatment: | Chromium Plating,medium And High Frequency Induction Hardening,quenching And Tempering,quenching Andtempering+medium And High Frequency Induction Hardening | Salt Spray Test: | Level 9150-300 Hours |
| Weldability: | Good | Packing: | After Rust Prevention Oil Treatment,each Piece Is Wrapped In A Waterproof Paper Tube/wooden Box |
| Quality Certificate: | Provide Product Quality Reports,chromium Plating Thickness Reports,salt Spray Test Reports,etc | Quenching And Tempering Hardness: | HB220-360 |
| Straightness: | ≤0.1mm/m | Surface Roughness: | ≤0.05μm |
| Chromium Plating Thicknes: | 0.02mm-0.50mm | Outer Diameter Tolerance: | Other Customizable Options) |
| Length: | L200-20000mm | Size: | φ20-φ500mm |
| Highlight: | hardened chrome solid shaft,automation solid shaft,linear motion solid shaft |
||
Product Description

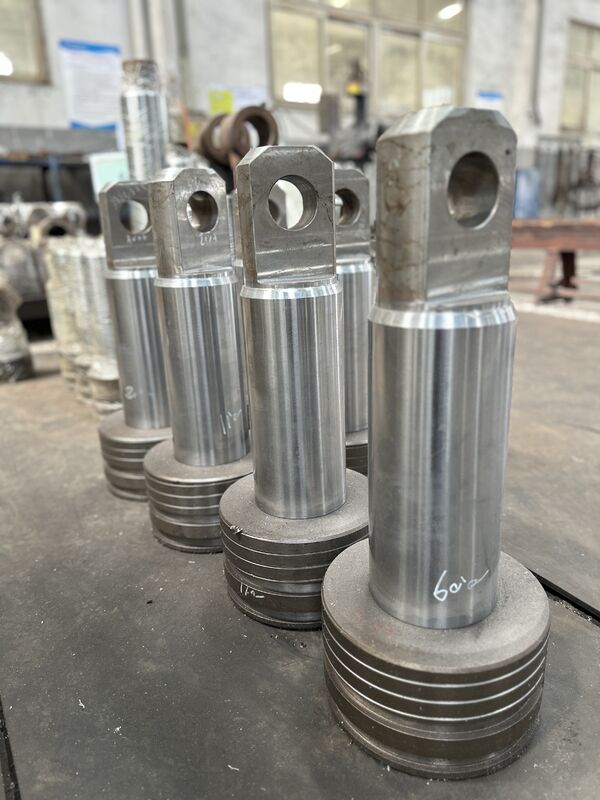

Hardened Chrome Solid Shaft for Automation and Linear Motion Systems
Product Overview
The Hardened Chrome Solid Shaft is engineered for automation and linear motion systems where durability and smooth operation are essential. Through advanced hard chrome plating and precision grinding, the shaft achieves exceptional surface hardness and wear resistance, ensuring stable and precise motion control.
Product Specifications
| Attribute | Value |
|---|---|
| Material | 45# Steel / 40Cr / 42CrMo / 304 / 316 Stainless Steel |
| Hard Chrome Thickness | 0.02 - 0.05 mm |
| Surface Hardness | HRC 55-65 |
| Surface Roughness | ≤ 0.03 μm |
| Straightness | ≤ 0.1 mm/m |
| Plating Adhesion | ≥ 50 N/mm² |
| Corrosion Resistance | Salt Spray Test ≥ 120 hours |
| Length Range | 200 mm - 7000 mm |
| Diameter Range | φ10 mm - φ150 mm |
| Tolerance | f7 / h6 |
Key Features
- Ultra-hard chrome-plated surface for extended service life
- High resistance to wear, corrosion, and fatigue
- Excellent dimensional accuracy for linear motion precision
- Compatible with bearings, bushings, and actuators
- Custom machining and induction hardening available
Applications
- Linear guides and automation systems
- Hydraulic and pneumatic cylinders
- Robotics and motion control devices
- Industrial conveyors and precision actuators
Customer Benefits
- Reduced friction ensures longer component lifespan
- Enhanced accuracy in repetitive motion applications
- Reliable performance in high-load or high-speed systems
- OEM & ODM support for custom engineering
Chemical Composition
