High Precision Stainless Steel Solid Shaft for Industrial Machinery
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhisheng |
| Model Number: | 20# |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 tons |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Anti rust oil to be applied on material and each rod to be packed in paper sleeve |
| Delivery Time: | 30days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 30tons a day |
|
Detail Information |
|||
| High-frequency Quenching: | HRC50-60 | Surface Hardness: | 800-1150HV |
|---|---|---|---|
| Surface Treatment: | Chromium Plating,medium And High Frequency Induction Hardening,quenching And Tempering,quenching Andtempering+medium And High Frequency Induction Hardening | Salt Spray Test: | Level 9150-300 Hours |
| Weldability: | Good | Packing: | After Rust Prevention Oil Treatment,each Piece Is Wrapped In A Waterproof Paper Tube/wooden Box |
| Quality Certificate: | Provide Product Quality Reports,chromium Plating Thickness Reports,salt Spray Test Reports,etc | Quenching And Tempering Hardness: | HB220-360 |
| Straightness: | ≤0.1mm/m | Surface Roughness: | ≤0.05μm |
| Chromium Plating Thicknes: | 0.02mm-0.50mm | Outer Diameter Tolerance: | Other Customizable Options) |
| Length: | L200-20000mm | Size: | φ20-φ500mm |
| Highlight: | stainless steel solid shaft,industrial machinery solid shaft,high precision solid shaft |
||
Product Description

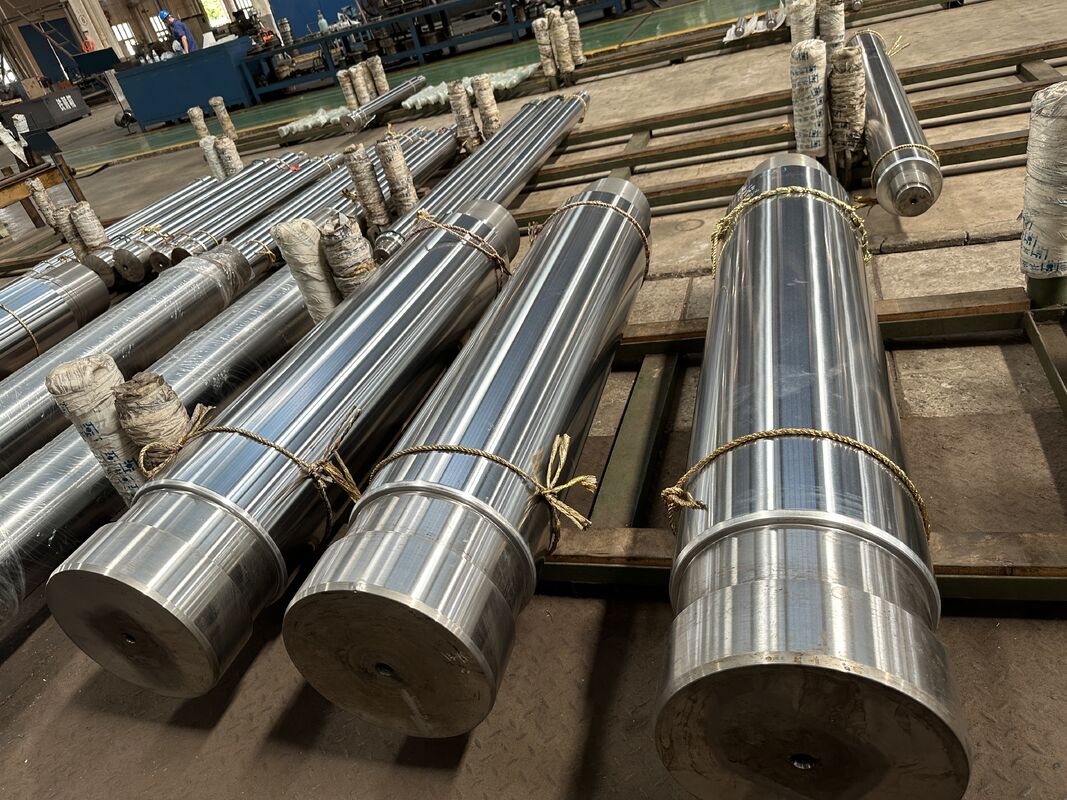

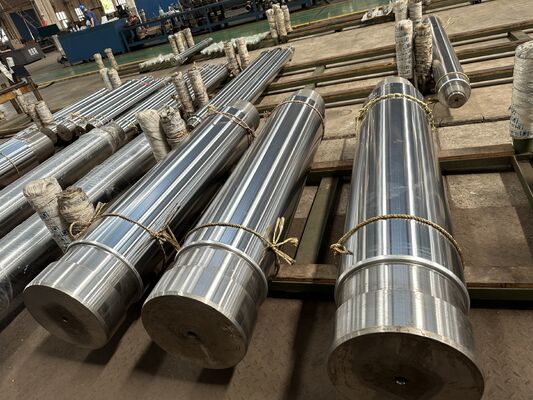

High Precision Stainless Steel Solid Shaft for Industrial Machinery
Product Overview
The High Precision Stainless Steel Solid Shaft is engineered for industrial machinery requiring exceptional dimensional accuracy, strength, and stability. Manufactured from premium stainless steel using advanced CNC machining, this shaft delivers superior rotational performance, excellent corrosion resistance, and extended service life—even in high-load or high-speed applications.
Designed for precision-driven systems including automation lines, CNC equipment, and motion control assemblies, this shaft ensures smooth operation, minimal vibration, and consistent mechanical reliability.
Product Specifications
| Attribute | Value |
|---|---|
| Material | 304 / 304L / 316 / 316L / 420 / 431 Stainless Steel |
| Manufacturing Process | Cold Drawn / Precision Ground / Polished |
| Surface Hardness | HRC 30-45 (depending on grade & treatment) |
| Surface Treatment | Polished / Chrome Plated / Induction Hardened |
| Tolerance | h6-h9 (customizable) |
| Straightness | ≤ 0.1 mm/m |
| Surface Roughness | ≤ 0.05 μm |
| Tensile Strength | ≥ 700 MPa |
| Yield Strength | ≥ 450 MPa |
| Corrosion Resistance | Excellent, suitable for humid or chemical environments |
| Working Temperature | -40°C to +400°C |
| Diameter Range | φ10 mm - φ500 mm |
| Length Range | 200 mm - 6000 mm (customizable) |
| Quality Certification | ISO 9001 / Material Test Report (MTR) / SGS |
Key Features
- High Dimensional Precision: CNC-ground and polished for superior concentricity and smooth surface finish.
- Excellent Corrosion Resistance: Made from stainless steel grades that withstand oxidation, moisture, and mild chemicals.
- Superior Mechanical Strength: Withstands torsion, impact, and high-speed rotation in industrial machinery.
- Stable Performance: Maintains accuracy and strength under fluctuating loads and long-term operation.
- Customizable Options: Supports different diameters, lengths, and surface treatments per application needs.
Applications
- CNC Machinery and Precision Equipment
- Industrial Automation Systems
- Robotics and Motion Control Assemblies
- Pumps, Gearboxes, and Motors
- Food Processing and Packaging Machinery
- Marine and Chemical Processing Equipment
Customer Benefits
- Enhanced Equipment Lifespan: Wear-resistant material reduces shaft deformation and downtime.
- Smooth Operation: High surface finish minimizes friction and noise during rotation.
- Easy Integration: Compatible with couplings, gears, and bearings for seamless assembly.
- Long-Term Reliability: Resistant to corrosion and fatigue, ideal for continuous-duty equipment.
- Custom Engineering Support: OEM & ODM production available for unique industrial applications.
Chemical Composition
