Roughness 0.05um Hydraulic Piston Rod Custom Diameter Coating Steel Piston Rod
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhisheng |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 tons |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Anti rust oil to be applied on material and each rod to be packed in paper sleeve |
| Delivery Time: | 30days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 30tons a day |
|
Detail Information |
|||
| High-frequency Quenching: | HRC50-60 | Surface Hardness: | 800-1150HV |
|---|---|---|---|
| Surface Treatment: | Chromium Plating,medium And High Frequency Induction Hardening,quenching And Tempering,quenching Andtempering+medium And High Frequency Induction Hardening | Salt Spray Test: | Level 9150-300 Hours |
| Weldability: | Good | Packing: | After Rust Prevention Oil Treatment,each Piece Is Wrapped In A Waterproof Paper Tube/wooden Box |
| Quality Certificate: | Provide Product Quality Reports,chromium Plating Thickness Reports,salt Spray Test Reports,etc | Quenching And Tempering Hardness: | HB220-360 |
| Straightness: | ≤0.1mm/m | Surface Roughness: | ≤0.05μm |
| Chromium Plating Thicknes: | 0.02mm-0.50mm | Outer Diameter Tolerance: | Other Customizable Options) |
| Length: | L200-20000mm | Size: | φ20-φ500mm |
| Highlight: | roughness 0.05um Hydraulic Piston Rod,Hydraulic Piston Rod custom diameter,custom coating steel piston rod |
||
Product Description
Customizable ultra long piston rod with tailored length, diameter, material, and coating options.

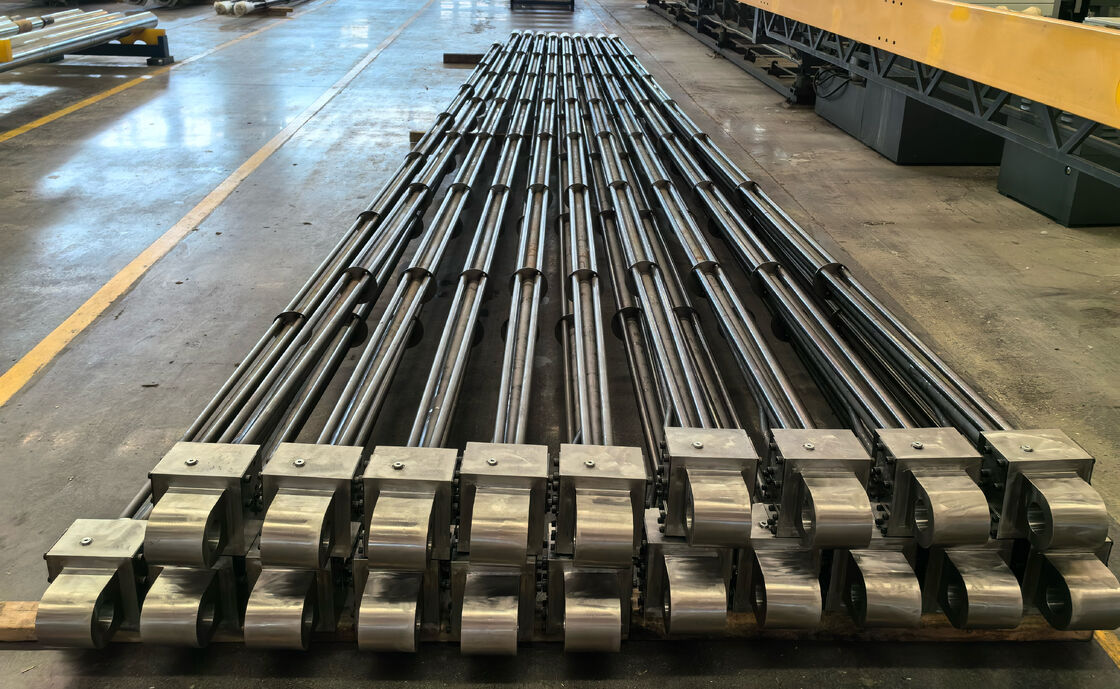

Customizable Ultra Long Piston Rod
The Ultra Long Piston Rod is precision-engineered for hydraulic and pneumatic systems requiring extended stroke lengths. Made from high-strength alloy or stainless steel, it offers exceptional straightness, surface finish, and dimensional stability over long spans.
Key Features
- Material: Alloy steel or stainless steel, quenched & tempered
- Surface: Hard chrome plating, Ra 0.1-0.3μm
- Straightness: ≤0.3mm/1000mm over long lengths
- Diameter: Customizable, typically Ø20-Ø300mm
- Length: Up to 10 meters or more, depending on application
Applications
- Hydraulic presses with extended stroke
- Long-stroke industrial cylinders
- Heavy machinery requiring long-range linear motion
Advantages
- Minimal deflection under high load
- Smooth operation over extended lengths
- Compatible with high-pressure hydraulic systems
Chemical Composition
