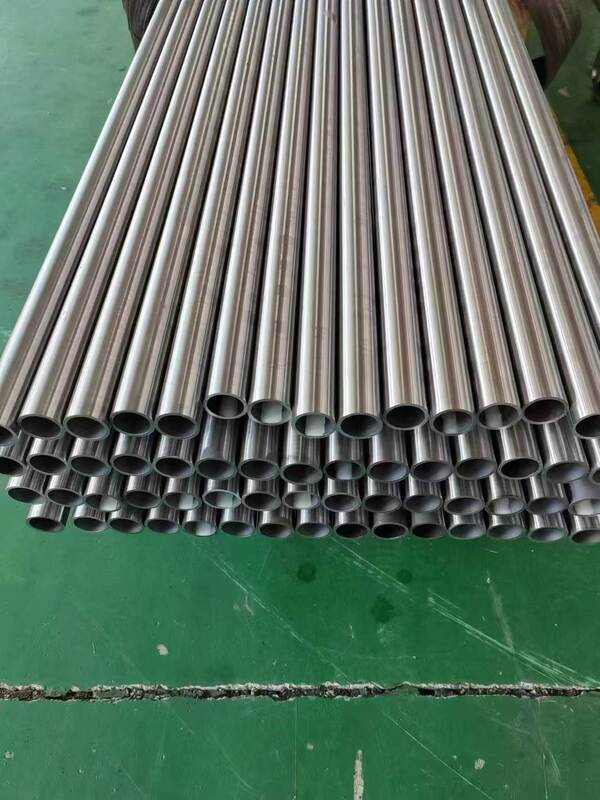

0.02mm - 0.50mm Steel Oil Pipe Chrome Steel Pipe 200mm - 20000mm
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhisheng |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 tons |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Anti rust oil to be applied on material and each rod to be packed in paper sleeve |
| Delivery Time: | 30days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 30tons a day |
|
Detail Information |
|||
| High-frequency Quenching: | HRC50-60 | Surface Hardness: | 800-1150HV |
|---|---|---|---|
| Surface Treatment: | Chromium Plating,medium And High Frequency Induction Hardening,quenching And Tempering,quenching Andtempering+medium And High Frequency Induction Hardening | Salt Spray Test: | Level 9150-300 Hours |
| Weldability: | Good | Packing: | After Rust Prevention Oil Treatment,each Piece Is Wrapped In A Waterproof Paper Tube/wooden Box |
| Quality Certificate: | Provide Product Quality Reports,chromium Plating Thickness Reports,salt Spray Test Reports,etc | Quenching And Tempering Hardness: | HB220-360 |
| Straightness: | ≤0.1mm/m | Surface Roughness: | ≤0.05μm |
| Chromium Plating Thicknes: | 0.02mm-0.50mm | Outer Diameter Tolerance: | Other Customizable Options) |
| Length: | L200-20000mm | Size: | φ20-φ500mm |
| Highlight: | 0.02mm Steel Oil Pipe,0.50mm Steel Oil Pipe 200mm,chrome steel pipe 20000mm |
||
Product Description
High-quality chrome plated oil pipe with excellent surface finish for smooth fluid transmission
The Chrome Plated Oil Pipe is designed for high-precision hydraulic and lubrication systems, providing stable oil flow and exceptional mechanical performance. Manufactured from seamless carbon or alloy steel, each pipe is carefully machined to ensure consistent internal diameter, high straightness, and surface smoothness. Hard chrome plating ensures superior surface hardness, reduces friction, and prevents wear.
Key Features
- Material Quality: Seamless carbon steel (20Cr, 45#) or alloy steel (40Cr, 42CrMo), quenched and tempered for optimal strength.
- Chrome Plating: 20-30μm hard chrome layer, surface hardness 850-1100 HV.
- Dimensional Accuracy:
- Straightness ≤0.2mm/1000mm
- Internal diameter tolerance ±0.02mm
- Surface roughness Ra 0.1-0.3μm
- Wall Thickness: 1-10mm, customizable according to pressure requirements.
- Length: Up to 6 meters per pipe, can be cut to custom lengths.
- Pressure Rating: Standard 25-50 MPa, higher pressure options available on request.
Applications
- High-pressure hydraulic pipelines
- Industrial lubrication systems
- Automotive hydraulic lines
- Precision machinery requiring stable oil transmission
Advantages
- Minimal oil leakage due to precise machining
- Reduced energy loss with smooth internal surface
- Compatible with a wide range of hydraulic fluids and lubricants
Chemical Composition
