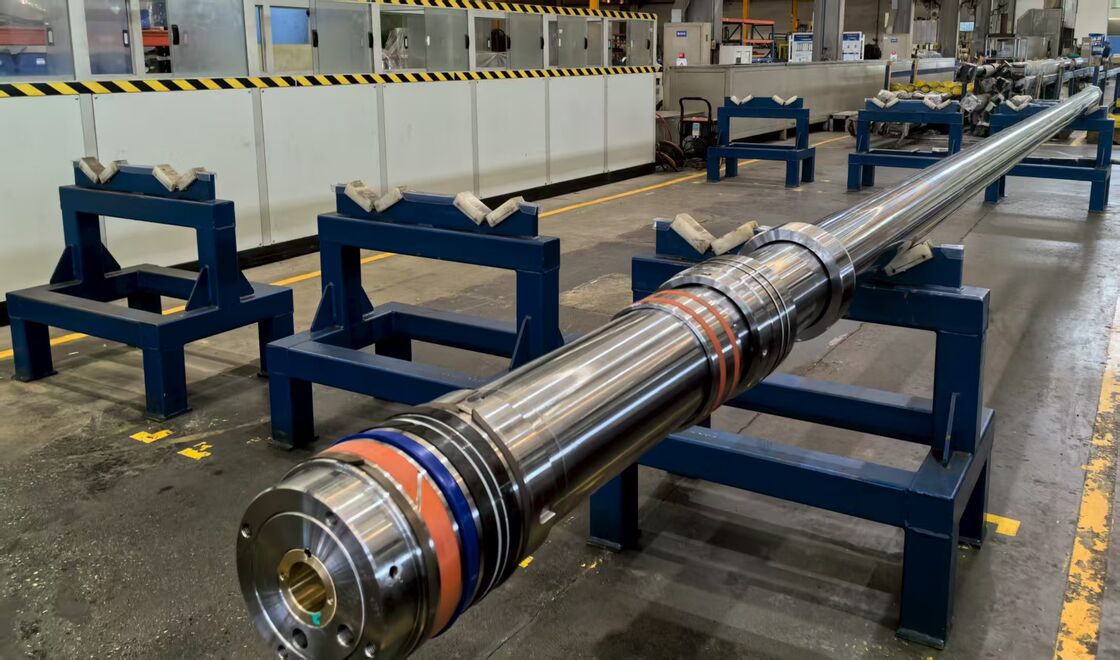

Heavy Duty Piston Rod Assembly Wear Resistant Connecting Rod And Piston Assembly
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhisheng |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 tons |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Anti rust oil to be applied on material and each rod to be packed in paper sleeve |
| Delivery Time: | 30days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 30tons a day |
|
Detail Information |
|||
| High-frequency Quenching: | HRC50-60 | Surface Hardness: | 800-1150HV |
|---|---|---|---|
| Surface Treatment: | Chromium Plating,medium And High Frequency Induction Hardening,quenching And Tempering,quenching Andtempering+medium And High Frequency Induction Hardening | Salt Spray Test: | Level 9150-300 Hours |
| Weldability: | Good | Packing: | After Rust Prevention Oil Treatment,each Piece Is Wrapped In A Waterproof Paper Tube/wooden Box |
| Quality Certificate: | Provide Product Quality Reports,chromium Plating Thickness Reports,salt Spray Test Reports,etc | Quenching And Tempering Hardness: | HB220-360 |
| Straightness: | ≤0.1mm/m | Surface Roughness: | ≤0.05μm |
| Chromium Plating Thicknes: | 0.02mm-0.50mm | Outer Diameter Tolerance: | Other Customizable Options) |
| Length: | L200-20000mm | Size: | φ20-φ500mm |
| Highlight: | Heavy duty Piston Rod Assembly,Piston Rod Assembly Wear resistant,corrosionproof connecting rod and piston assembly |
||
Product Description
Heavy-duty piston rod assembly, wear-resistant, corrosion-proof, ideal for high-pressure cylinders
Product Overview
The Piston Rod Assembly ensures efficient linear power transmission in multiple industries, combining strength, precision, and reliability. It is supplied as a complete, ready-to-install component.
Material & Process
- Carbon steel, alloy steel, or stainless steel rod body
- Quenched, tempered, and surface treated
- Assembled with seals, nuts, piston heads, and connectors
Features & Advantages
- Simplified installation and replacement
- Optimized for high-load and long-stroke cylinders
- Compatible with standard and customized hydraulic systems
- Designed to meet international quality standards
Application Areas
- Automotive shock absorbers and lifting systems
- Hydraulic and pneumatic cylinders
- Agricultural and forestry equipment
- Renewable energy (wind and solar hydraulic systems)
Customization Options
- Special materials and coatings for different environments
- End fittings: eye, clevis, flange, or spherical joint
- Seal options for low temperature, high temperature, or chemical resistance
Example Specifications
| Diameter range | 10-250 mm |
| Length | up to 8000 mm |
| Hardness | HRC 35-55 (adjustable) |
| Surface finish | Ra ≤ 0.4 μm |
Chemical Composition
