HRC50 - 60 Hollow Shaft Chromium Plating For Industrial Applications
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhisheng |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 tons |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Anti rust oil to be applied on material and each rod to be packed in paper sleeve |
| Delivery Time: | 30days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 30tons a day |
|
Detail Information |
|||
| High-frequency Quenching: | HRC50-60 | Surface Hardness: | 800-1150HV |
|---|---|---|---|
| Surface Treatment: | Chromium Plating,medium And High Frequency Induction Hardening,quenching And Tempering,quenching Andtempering+medium And High Frequency Induction Hardening | Salt Spray Test: | Level 9150-300 Hours |
| Weldability: | Good | Packing: | After Rust Prevention Oil Treatment,each Piece Is Wrapped In A Waterproof Paper Tube/wooden Box |
| Quality Certificate: | Provide Product Quality Reports,chromium Plating Thickness Reports,salt Spray Test Reports,etc | Quenching And Tempering Hardness: | HB220-360 |
| Straightness: | ≤0.1mm/m | Surface Roughness: | ≤0.05μm |
| Chromium Plating Thicknes: | 0.02mm-0.50mm | Outer Diameter Tolerance: | Other Customizable Options) |
| Length: | L200-20000mm | Size: | φ20-φ500mm |
| Highlight: | hollow shaft chromium plating,HRC50 industrial hollow shaft,HRC60 chromium plated hollow shaft |
||
Product Description

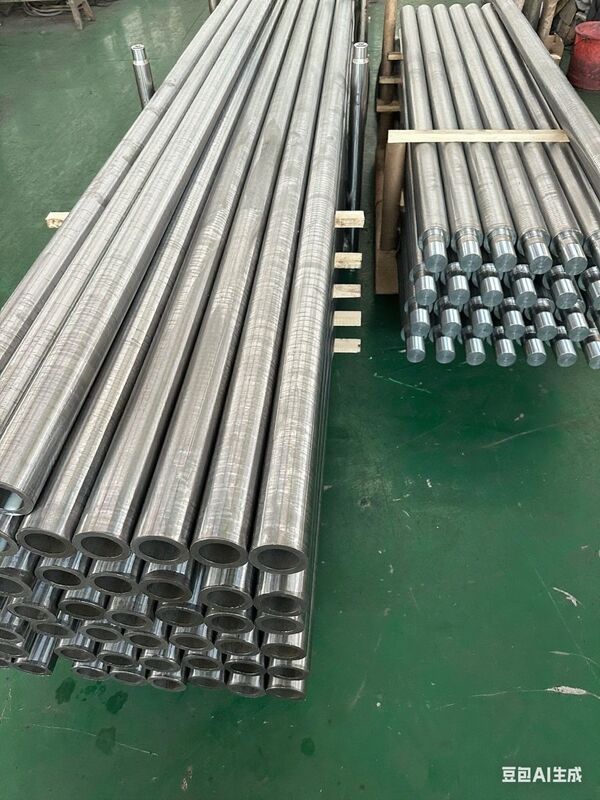

Hollow Shaft
Product Specifications
| Attribute | Value |
|---|---|
| High-frequency quenching | HRC50-60 |
| Surface hardness | 800-1150HV |
| Surface treatment | Chromium plating, medium and high frequency induction hardening, quenching and tempering, quenching and tempering+medium and high frequency induction hardening |
| Salt spray test | Level 9150-300 hours |
| Weldability | Good |
| Packing | After rust prevention oil treatment, each piece is wrapped in a waterproof paper tube/wooden box |
| Quality certificate | Provide product quality reports, chromium plating thickness reports, salt spray test reports, etc |
| Quenching and tempering hardness | HB220-360 |
| Straightness | ≤0.1mm/m |
| Surface roughness | ≤0.05μm |
| Chromium plating thickness | 0.02mm-0.50mm |
| Outer diameter tolerance | Other customizable options |
| Length | L200-20000mm |
| Size | φ20-φ500mm |
Product Overview
The Hollow Shaft is engineered for applications where both strength and weight optimization are critical. Its tubular structure reduces mass while maintaining rigidity and torque transmission capabilities.
Material & Surface Treatment
- High-grade alloy steels or stainless steels
- Heat-treated for hardness and toughness
- Protective coatings: black oxide, chrome plating, zinc plating
Features & Benefits
- Lightweight design reduces mechanical load and energy consumption
- Excellent resistance to bending and fatigue
- Lower moment of inertia for faster response and acceleration
- High efficiency in power and motion transfer
Applications
- Automotive: Lightweight axles, drive shafts
- Aerospace: Precision motion systems
- Industrial: High-speed machinery and robotics
- Marine: Corrosion-resistant transmission components
Custom Options
- Bore diameter and wall thickness customized to client needs
- CNC-machined splines, grooves, or threads
- Lengths up to 6 meters available
Chemical Composition
