ST52 Solid Shaft HRC50-60 High-Frequency Quenching Chromium Plated
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhisheng |
| Model Number: | ST52 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 tons |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Anti rust oil to be applied on material and each rod to be packed in paper sleeve |
| Delivery Time: | 30days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 30tons a day |
|
Detail Information |
|||
| High-frequency Quenching: | HRC50-60 | Surface Hardness: | 800-1150HV |
|---|---|---|---|
| Surface Treatment: | Chromium Plating,medium And High Frequency Induction Hardening,quenching And Tempering,quenching Andtempering+medium And High Frequency Induction Hardening | Salt Spray Test: | Level 9150-300 Hours |
| Weldability: | Good | Packing: | After Rust Prevention Oil Treatment,each Piece Is Wrapped In A Waterproof Paper Tube/wooden Box |
| Quality Certificate: | Provide Product Quality Reports,chromium Plating Thickness Reports,salt Spray Test Reports,etc | Quenching And Tempering Hardness: | HB220-360 |
| Straightness: | ≤0.1mm/m | Surface Roughness: | ≤0.05μm |
| Chromium Plating Thicknes: | 0.02mm-0.50mm | Outer Diameter Tolerance: | Other Customizable Options) |
| Length: | L200-20000mm | Size: | φ20-φ500mm |
| Highlight: | ST52 solid shaft HRC50-60,high-frequency quenching solid shaft,chromium plated solid shaft |
||
Product Description

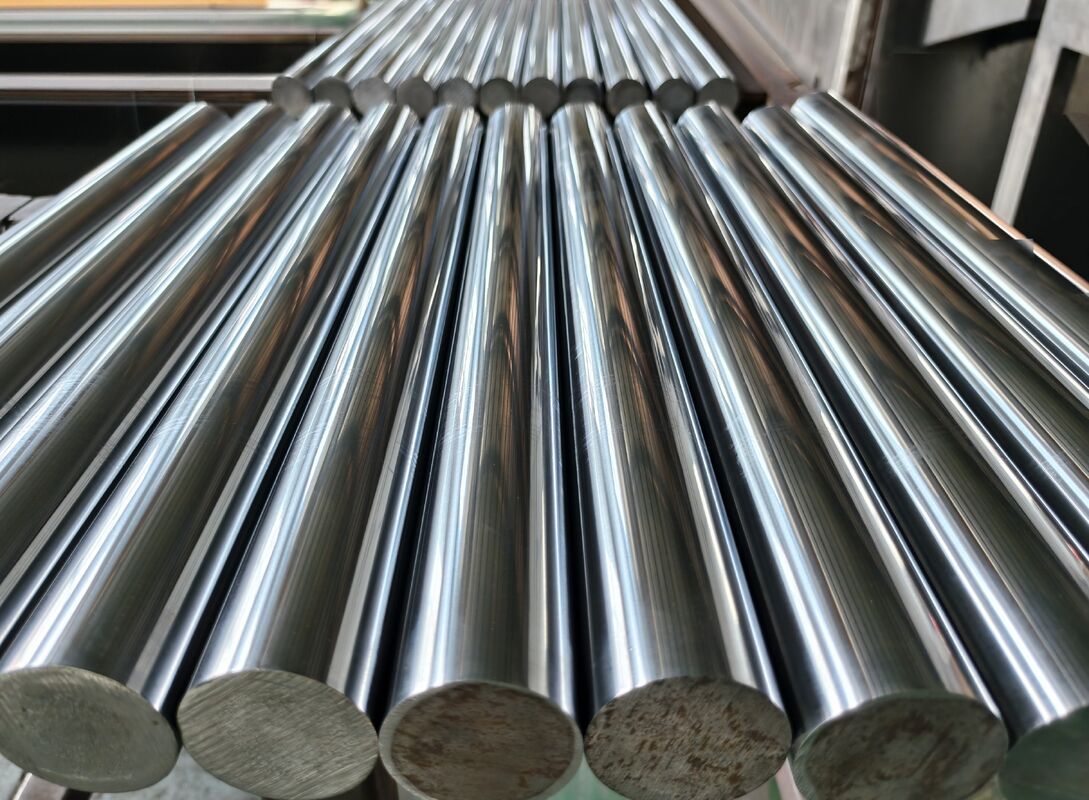

ST52 Solid Shaft
Product Specifications
| Attribute | Value |
|---|---|
| High-frequency quenching | HRC50-60 |
| Surface hardness | 800-1150HV |
| Surface treatment | Chromium plating, medium and high frequency induction hardening, quenching and tempering |
| Salt spray test | Level 9150-300 hours |
| Weldability | Good |
| Packing | After rust prevention oil treatment, each piece is wrapped in a waterproof paper tube/wooden box |
| Quality certificate | Product quality reports, chromium plating thickness reports, salt spray test reports |
| Quenching and tempering hardness | HB220-360 |
| Straightness | ≤0.1mm/m |
| Surface roughness | ≤0.05μm |
| Chromium plating thickness | 0.02mm-0.50mm |
| Outer diameter tolerance | Other customizable options |
| Length | L200-20000mm |
| Size | φ20-φ500mm |
Product Overview
Engineered for demanding applications, the ST52 Solid Shaft offers exceptional performance under heavy torque and load conditions. It provides unmatched rigidity and ensures reliable function in high-stress environments.
Material & Surface Treatment
- Material options: Alloy steel, stainless steel, hardened steel
- Heat-treated for improved hardness and wear resistance
- Anti-corrosion coatings available (nickel plating, black oxide, zinc plating)
Features & Benefits
- High torsional rigidity, preventing deformation under load
- Strong resistance to bending and fatigue
- Excellent vibration stability, ensuring smooth rotation
- Long-lasting performance in both dry and lubricated conditions
Applications
- Automotive driveshafts and axles
- Agricultural machinery components
- Heavy-duty industrial machines
- Gear-driven systems
Custom Options
- Precision machining for splines, grooves, or threads
- Special lengths and diameters available upon request
- Optional coatings for harsh environments
Chemical Composition
